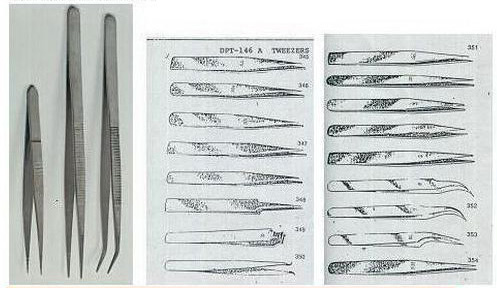

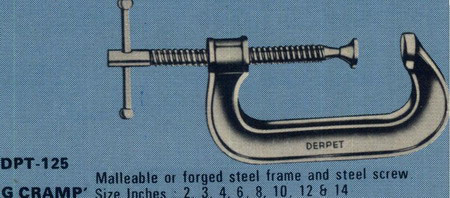

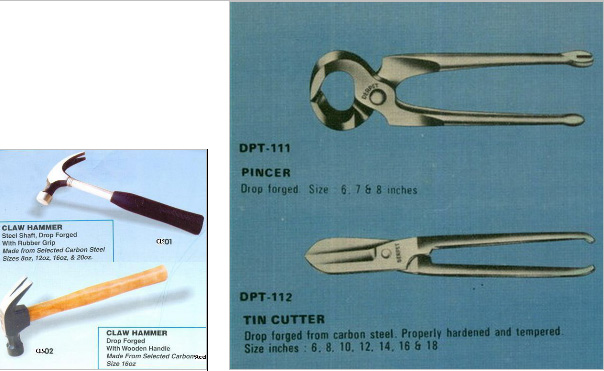

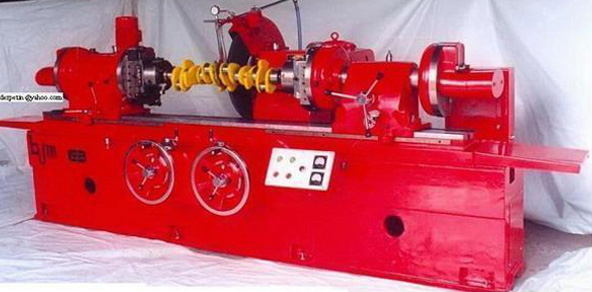

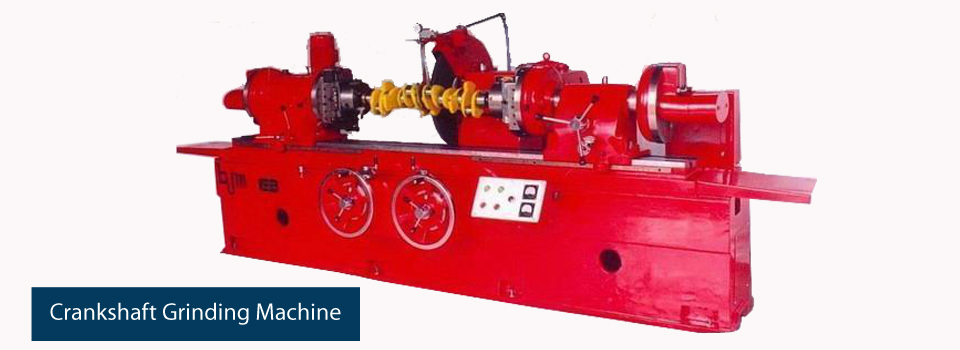

Crankshaft Grinding Machine

Specifications

Size (in inches)		48"	60"	72"
Max. distance between centres	mm	1200	1500	1800
Max. distance between chucks	mm	1100	1400	1700
Maximum Weight of Crankshaft	kg.	60	80	100
Swing over Table	mm	400	500	500
Maximum Stroke	mm	175	225	225
Work Head Spindle Speeds	R.P.M.	27-41-61	27-41-61	27-41-61
Grinding Wheel Speed	R.P.M.	950	950	950
Work Space Required	mm	4500x2500	5400x2800	6000x2800
Shipping Dimention (Approx.)	lxwxh	3200x1650x1600	3550x1800x1750	3750x1800x1750
Shipping Volume (Approx.)	M	8.50	11	12

Turret Ram Milling Machine

Technical Specifications:

Model	RT 1mm (Manual/Auto)	RT 2 mm (Manual/Auto)
Table Size	1100x250	1300x280
X-Longitutional Travel Manual/Auto	525/475	700/600
Y-Cross Travel Manual/Auto	250/200	300/250
Z-Vertical Travel Manual/Auto	350/330	450/425
Spindle to Table Distance	350	450
T-Slot No.-Width-Center	3-17-65	3-17-70
Table Load (Kg.)	400	700
No. Of Rapid & Feeds	Nil/1,9	Nil/1,9
X & Y Rapid Range & Feed Range	Nil/700(13-200)	Nil/700(13-200)
Z - Rapid Range & Feed Range	Nil/240, 333(5-100)	Nil/240, 333(5-100)
No. Of Speeds & Range	8 & 60 to 2350	8 & 60 to 2350
Spindle Taper	R8/IS0 40	R8/IS0 40
Quill Travel (Manual)	127	127
Head Swivel	RxL 90° FxB 45°	RxL 90° FxB 45°
Ram Travel (Manual)	350	450
Ram Rotate	360°	360°
Spindle Motor	1.5 HP	2 HP
Feed Motor	1.5 HP	2 HP
Net Weight in Kg approx.	1100	1600

Turret Ram Milling Machine

Technical Specifications:

Model	VM3 B	VM4 B
Table
Working Surface	1400 x 350	1600 x 360
Swivel	±45°	±45°
T-Slot Nos./ Size	3/17	3/17
T-Slot Centre	80	90
Table Loading Capacity (Kg)	500	800
X-Longitudinal Travel	800	900
Y-Cross Travel	255	305
Z-Vertical Travel	450	500
FEEDS
No. of Rapid Feeds	2	2
No. of Feeds	18	18
X-Y Rapid Feeds/min.	735-1065	735-1065
Z-Rapid Feed/min.	250-350	250-350
Range of X-Y s Feeds/min.	13,305	13,305
Range of Z Feeds/min.	4 to 90	4 to 90
SPINDLE
Spindle Taper	ISO 40	ISO 40
No. of Spindle Speeds	9 or 12	9 or 12
Range of Spindle Speeds (RPM)	45-1120	45-1120
Distance from Spindle to Table	450	500
Distance Spindle Centre to Column	350	400
Vertical Head Tilt	± 90°	± 90°
Manual Quill Travel	95	95
ELECTRICAL
Main Motor	5 HP	5 HP (960 RPM)
Feed Motor	2 HP	2 HP
Coolant Pump (Optional)	0.1 HP	0.1 HP

Turret Ram Milling Machine

	Spinner OR Router

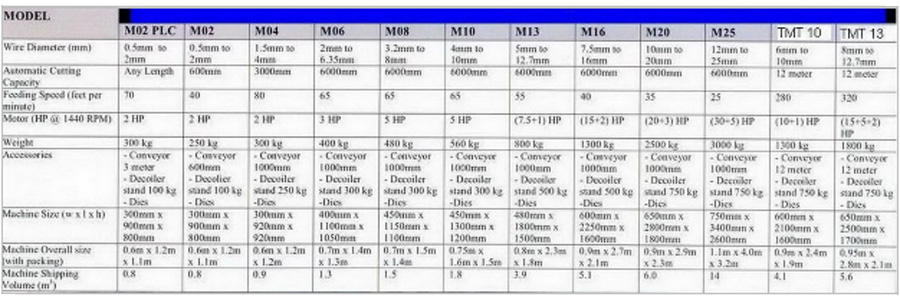

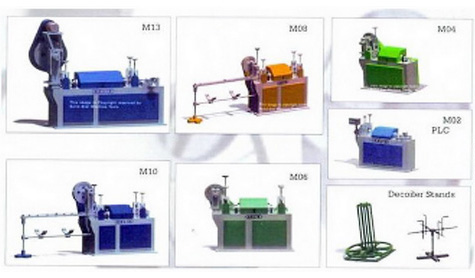

Accurate Straightening & Cutting No Scratch No Damage to wire Clean Cutting without any Burs. Each individual V Belt, adjustment Easy to Operate. Noiseless & Vibration Free to best extent.	Optional Accessories: Special Punch - holder for thinner wire. Extra Cutting Conveyor Gauge Motorized heavy capacity De-cover Stand. Carbide Straightening Dies. Additional Cutting Dies & Blades. Electrical Moter & Other Accessories.

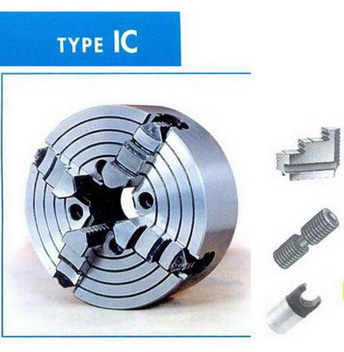

CHUCKS WITH BACK PLATE ALSO AVAILABLE

SPECIAL FEATURES

BODY :	Jaw ways Hardened and groung.
JAWS :	Jaws teeth Precision ground from both sides
SCROLL :	Scroll threads precision ground from both sides. Hardnedd 40-45 Hrc.
PARTS :	Interchangeable
RUNOUT :	Less than 0.04 from 160 mm onwards

MATERIAL COMPOSITION :

BODY:	C I BODY : High tensile, wear resistant cast iron alloyed with Chrome and Managanese, Hardness180-210 Bhn. SG IRON BODY : 500/7 grade of SG Iron, Hardness 180-210 Bhn STEEL BODY : Medium carbon steel of 600 mpa tensile strength
JAWS:	Case Hardening Steel with tough core, hardness 56-60 Hrc.
PINION:	Case Hardening alloy steel hardness 42-50 Hrc.
SCROLL:	Forged High strength wear resistant case hardening alloy steel, Hardness 40-45 Hrc.

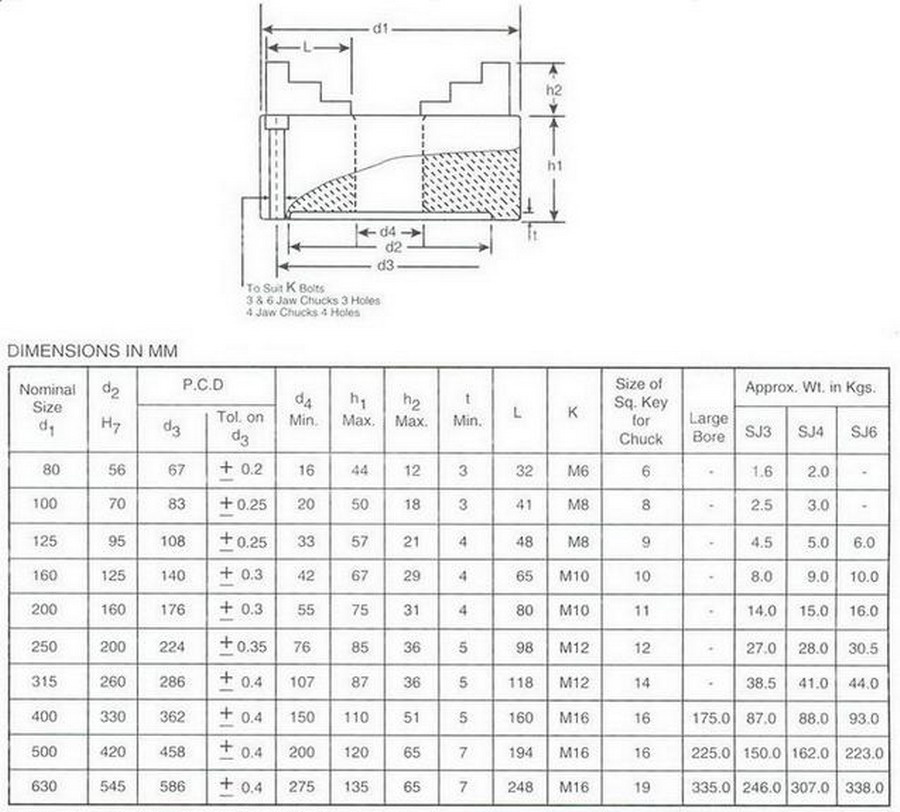

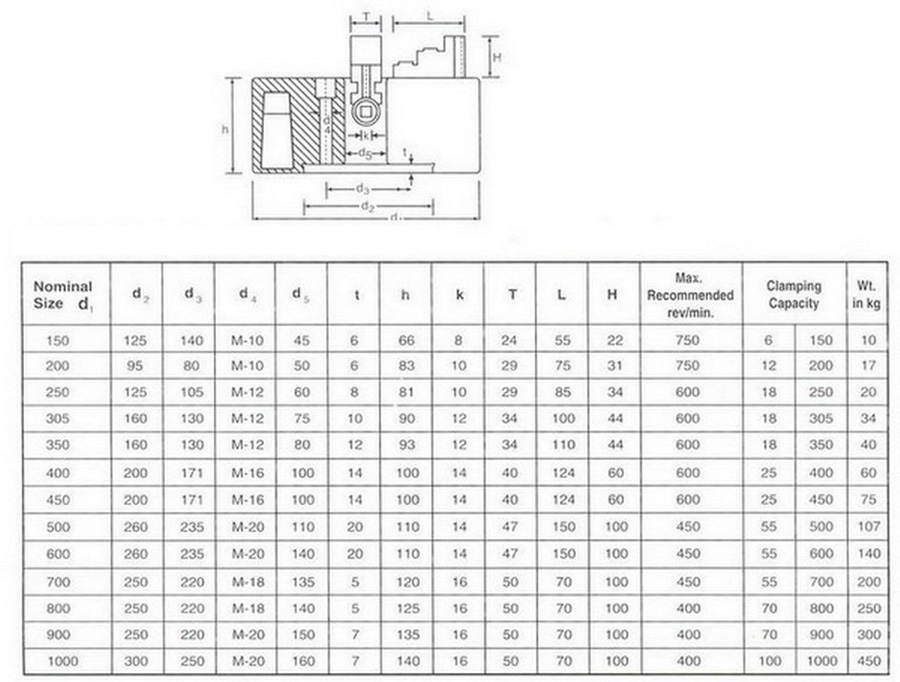

DIMENSIONAL DATA(Heavy Duty)

TECHNICAL FEATURES

BODY : High strength cast iron alloyed with manganese and chrome(SG Iron optional)
JAWS : Case hardened and precision ground at gripping faces and jaw ways.
OPERATION SCREW :
	Case hardened alloy steel for strength and wear resitance.
	Squaire thread fir HIGH GRIPPING FORCE
THURST BEARING : Case hardened alloy steel so designed to provide maximum strength and life to working parts

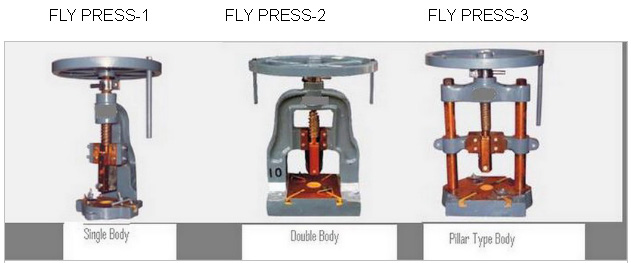

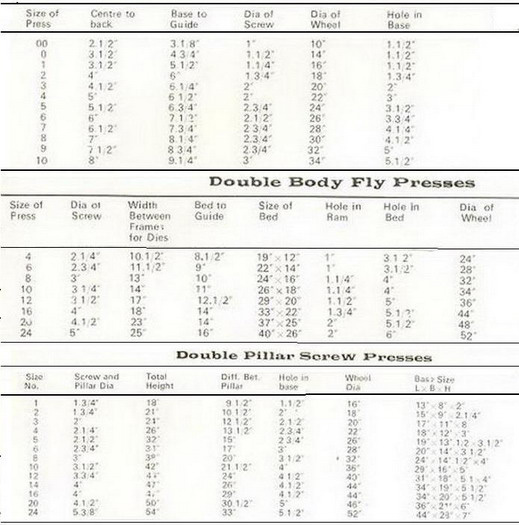

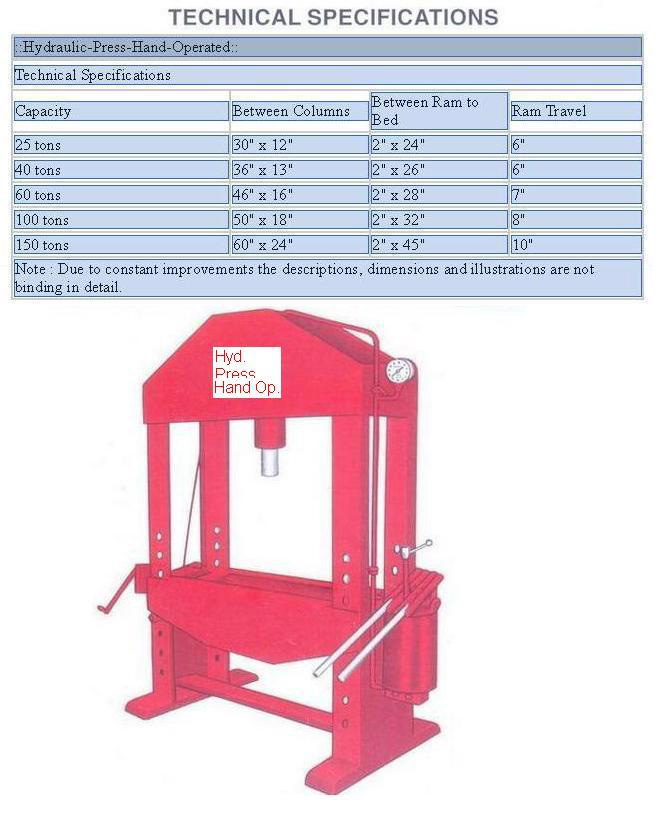

Fly Presses

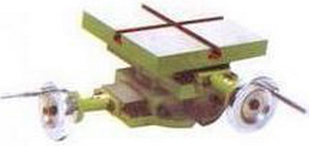

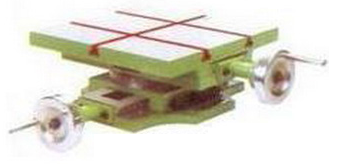

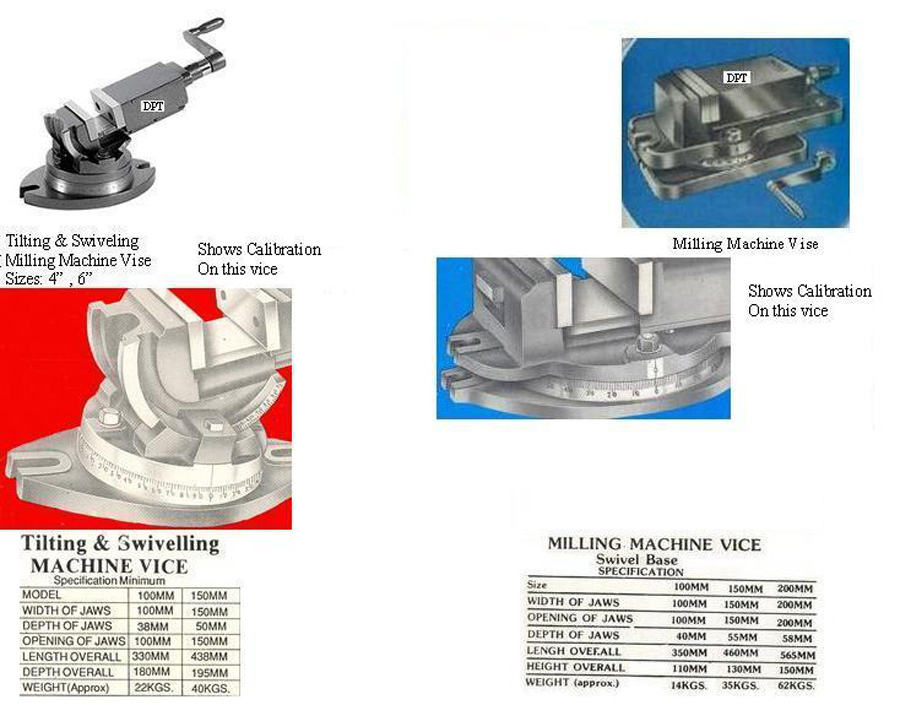

Compound sliding tables
